Highest quality
medical technology
The Requirements
Medical technology imposes extremely high demands on precision and hygiene combined with a high degree of operating safety. For example, mix-ups must be absolutely ruled out when quickly connecting and disconnecting lines for medical gases and liquids.
Manufacturers of medical technology products therefore have to meet special quality requirements, which are stipulated in DIN EN 13485. Furthermore, users of medical gases are increasingly demanding complete systems such as ready-made and tested hose lines which they only have to connect according to the “plug and play” principle.
Our Solutions

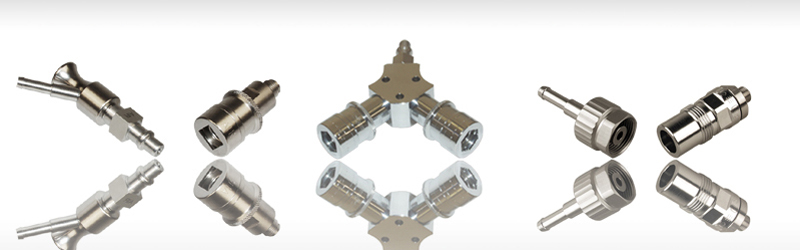

For sensitive applications such as these, we offer a comprehensive range of plug and screw couplings that have been specially developed for the respective medical-technical fields. Areas of application include medical gas supply, diagnostics, dialysis, computer tomography, sterile technology and the supply of breathing air. Operating safety is guaranteed by non-interchangeable designs that safely exclude incorrect connection of the media connections. Our production and assembly meet the requirements of DIN EN 13485. Assembly is performed in an area separated from the rest of production, which is designed for the special requirements and needs of medical technology.
Do you have any questions?
We are happy to help.
Our trained staff will provide you with the best advice. Call us or use our contact form.
Screw and plug-in couplings for gas supply in medical technology
Gas-specific screw and plug-in couplings are employed for the supply of medical gas to hospital beds, operating theatres or intensive care units. The monocouplings are suitable for vacuum and various gaseous media, such as air, oxygen, carbon dioxide and nitrous oxide. To ensure the proper connection of the correct coupling half, quick-release couplings have a non-interchangeable design with country-specific moulded closures. They can also be equipped with angled plugs and other appropriate accessories, such as quick-release axles, multi-outlet ports distributors or fine adjustment valves.
Quick-release couplings for dialysis applications in medical technology
Monocouplings are employed in the medical field for dialysis and are used to supply water to the dialysis filters, to supply the water circuits of the dialysis machines and for the concentrate and waste water lines of the dialysis machines. The quick-release couplings are precisely adapted to the respective media conveyed in the lines, be it water, dialysis concentrate or waste water. Depending on the area of application, the non-interchangeability of the couplings is ensured by different colour markings or several designs. The couplings are easy to clean in accordance with the high hygiene and safety requirements in medical technology.
Breathing air couplings in medical technology
Breathing air supply is a demanding and safety-relevant area in medical technology and requires correspondingly high-quality quick-release couplings. They are used, among other things, for breathing masks for fire brigades, rescue personnel and for personnel exposed to hazardous vapours and gases or contaminated atmospheres. The quick-release couplings are equipped with a safety mechanism that prevents unwanted decoupling. The inhaled air couplings are also employed on the central or mobile units and gas cylinders that are used to generate and prepare the inhaled air. Coaxial couplings are not only designed for inhaled air, but also for communication lines. All inhaled air couplings are fail-safe and particularly robust and durable, so that their functionality is ensured even under heavy external loads.
Universal couplings in medical technology
A variety of universal couplings are used in the medical technology sector. Depending on the nominal width and type, they are designed for pressures of up to 60 bar. The quick couplings are suitable for handling liquid and gaseous media and satisfy the very highest international safety standards. They are available in various materials, including PVDF and V4A, and are equipped with a mechanical coding that ensures the non-interchangeable connection of the coupling halves.
Clean-break couplings in medical technology
Low-leakage quick couplings in clean-break technology ensure quick, simple and safe coupling of lines in medical technology without loss of media and ingress of atmosphere into the line system. They are employed at higher temperatures and wherever particularly toxic, aggressive or (non-) lubricating media are conveyed in the line. Depending on their nominal width and material design, they are designed for operating pressures of up to 60 bar.
Monocouplings for computer tomography equipment in medical technology
Special quick-release couplings with a plug or screw cap connect the cooling lines leading to the X-rays in computer tomography equipment. They are capable of withstanding high accelerations and meet the highest demands in terms of tightness. Clean-break screw couplings ensure coupling without air pockets in the cooling medium and thus guarantee the proper functioning of the CT units. Lines can be decoupled with virtually no loss of medium.
