series HG
Hydrogen refueling systems with high pressure refueling nozzle for the transfer of gaseous hydrogen, for its use in hydrogen refueling stations.
Hydrogen gas: 350 NF / HF and 700 NF bar resp. 5,000 NF / HF and 10,000 NF psi technology
For refueling vehicles with high pressure gaseous hydrogen, WALTHER-PRÄZISION offers its specially designed refueling system. Major components of this system are the breakaway coupling, hose set, refueling nozzle and the parking station.
Type | Nominal bore | NWP [bar] | MOP [bar] | MAWP [bar] |

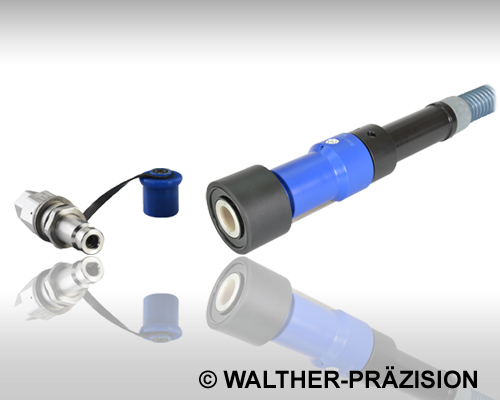

HG-004 | 4 | 700 | 875,0 | 962,5 |
HG-008 | 8 | 350 | 437,5 | 481,25 |
NWP = Nominal working pressure | MOP = Maximal operating pressure | MAWP = Maximal allowable working pressure
Refueling variants available:
for flow rates up to 120 g/s – in accordance to DIN ISO 17268
Media:
gaseous hydrogen at -40 °C
Materials:
stainless steel 1.4404 / 1.4571 or similar; POM
Special features / options:
first coupling worldwide for fueling of automobiles with new safety type locking system in push-pull technology
downloads
videos
notice
Please urgently seek for advice in the following cases:
- Coupling/uncoupling under residual pressure
- Pulsating pressures
- Use of non-lubricating media
- Temperature-sensitive processes
- Interface reduction
- Special requirements for cleanliness
- Specific certifications
- Non-movable head of liquid
- Highly viscous media
- Optimization of flow rate
